Sidewinder keys for Audi

I am taking a crack at the Audi world. Please help me through it. I really need to know if your model has the immobilizer system. The audi parts catalog says ALL of them have the immobolizer, this is not true. Before starting your car, insert the key, turn it on, and look for a light that looks like a car, it will only be on for 3 seconds, if you turn the ignition of and on again, it will not light up. The key has to be removed from the ignition before it will read it again. Even if you do not want to order keys, let me know what year and model you have and if you do or do not have the immo system. email mark1service@comcast.net  thanks
Most Audis up to 2001 do not have the immo system, 2002 up do. if you have the poly shape remote, with the short blade flip key, you have the immo system, I do not cut these keys. I only cut keys and sell remotes for the oval button application cars.
I do not offer activation options for Audi model cars, you will need to contact your Audi dealer or qualified automotive locksmith if your car has this system.


CONTACT US by clicking here to order a flip key, please include your vin and model, also include a picture of the key pointing to the right please




Please do not call us on the phone about sidewinder keys. Send us an email with your vin and if possible an image of your key blade. We really cannot stop what we are doing and answer questions on the phone without that information first. You will receive a reply with prices, and instructions according to your specific car.


Sidewinder Audi key application 1997 to 2005

This guide will be updated as information and applications are verified. Audi does not
have a comprehensive application guide or chart. Nor is their parts application of these remotes complete or specific.

Please understand any remote for that year group of Audi can be matched to any Audi in the same group.

This is called matching the remote to the car. This is the 2 key procedure and has nothing to do with the key itself.

One remote can be matched to any number of Audis that it is designed to work for. It transmits a digital signal. You teach the car to respond to that unique signal. Have a Audi TT and a Audi A6 ? it can open doors on all of them, and if the cars are close together, it can lock and unlock all of them at the same time.

Keys are activated. The car sends a pulse through a coil of wire located around the ignition switch. The chip in the key is excited. If the chip has been imprinted with the identity of that car it will see its reflection and allow the motor to run on most 2002 and newer Audis.

Keys previously activated to a different car cannot be imprinted with a new identity. (write only) so used keys will not work on another Audi. Only the remote portion can be used with another Audi.


Most often miss understood is programming. Programming the button REMOTE portion of the key is simple and referred to as matching.
You may need 2 keys. You must be able to lock the drivers door and have the red led alarm light next to the lock button blink. If it does not blink, the alarm does not know the door is closed and will not go into matching mode.

The NAA keys are cut by using your serial number to the car (vin dependent) There is a 4 digit key code, unless you are the original owner or you have the black zip tie tag that was attached to the black valet key,  you will not have the key code.  We use an image of your key to verify the code to be cut.

Applications contained here-in are for the Audi models in North America. Audi has 7 markets worldwide. Due to frequency licensing in different countries the remotes will have other part numbers similar to ones here in the USA.

Here is the short version:

2002-2005 Audi TT: any HAA key works, 3 button remote = 4D0837231N , immobilizer system

2001 to 2002 Audi A6: any HAA Key works, 3 button remote 4D0837231P  immobilizer system

note: decimal point refers to month of manufacture 2006.3 means March, 2005.6 means June

Audi security key system is like the old VW bug with the cart in front of the horse, you program the car to the key, not the key to the car.

Starting in 1998 with the Audi TT, A4 A6  the key does not have a computer chip, and does not need to be activated. The remote has the oval 3 button HLO 4D0837231Q  (2 button T) . The remote has a swivel loop to attach to a key ring. This remote will not work with A6 Quattro and newer Audi . Some models, the transition date is different, look for the yellow car with the key under it when you turn the ignition on. See the yellow car? It only comes on for a few seconds when you turn the ignition on. Using a key not coded to the car will cause the light to blink and the engine will shut off

Audi A4 through 2001 and the S4 through 2002 do not have Immo at all. These are B5.

A4 (B6) starting 2002 through 2005.5 have Immo3.

A4 (B7) starting 2005.5 have Immo3. I do not know if they changed and went to Immo4 (Fazit) during this run.

A6 (C5) from 1998 through 2000 have no Immo.

A6 (C5) 2001 through 2005 have Immo3 although the first 2001 cars off the line in about May/June 2000 did not get it installed.

I'm not that familiar with the TT from that timeframe but I think it's similar to the A6 -- Immo3 starting 2001.

 credit for this information given to THREE RINGS member of Audizine.com  link to forums  http://www.audizine.com/forum/showthread.php/428047-How-to-program-your-Audi-flip-key-fob
Member Three Ringsdiaftia's Avatar
Join Date
Oct 19 2007
AZ Member #
Danville, CA
How to program your Audi flip key fob.
I have done a ton of searching and found how to accurately program a key fob on the forums. The problem with all the directions that I had found was that once I programmed one key fob, the others would erase.
None of the directions showed all the steps to program more than one key correctly without losing the others (which most people will have). This DIY has the correct programing procedure no matter how many fobs you have.

For some reason if you pull your battery or you change the battery in your fob you might be finding a situation where you need to do this programming.

There are two kinds of programming. If you have remotes that have been programmed to the car previously the steps are easy. There are longer steps if the keys are new and those are the secondary ones.

Steps to reprogram keys to a car they are already linked to:
1. Press and hold the unlock key on a remote
2. Insert key in ignition and turn to on (while still holding unlock)
3. Hold unlock while in the on position for 2 seconds
4. Turn key to off, remove from ignition and release button.

Do this for each remote. Relink to seat positions (press and hold mem position #, then unlock button for 2 seconds and release both) and done.

To program new remotes on a car never linked to previously:

1. Take a key (valet key works best, put it into the ignition and turn the key to the "on" position, so the dashboard lights come on.
2. Roll down the driver's side window (not required, but a good idea in case there's a problem).
3. Exit the car and close the door.
4. With a second key, physically lock the doors by turning the key clockwise (don't use a remote).
5. Take the first remote to be programmed, press the unlock button. The lights will flash once.
6. Wait 10 seconds and press the unlock button. The doors should unlock. That first transmitter is now programmed.

***If you have only one key skip to step 16. Otherwise continue to step 7.***

7. Lock the door again (physically) with the key, (not the remote) by turning clockwise.
8. Press the unlock button two times with a one second interval in between, the lights will flash with each button press for a total of two flashes.
9. Wait 10 seconds and press the unlock button. The doors should unlock. The second transmitter is now programmed.

***If you have three keys proceed to step 10. Otherwise skip to step 16.***

10. Lock the door again (physically) with the key, (not the remote) by turning clockwise.
11. Press the unlock button three times with a one second interval in between, the lights will flash with each button press for a total of three flashes.
12. Wait 10 seconds and press the unlock button. The doors should unlock. The third transmitter is now programmed.

***If you have four keys proceed to step 13. Otherwise skip to step 16.***

13. Lock the door again (physically) with the key, (not the remote) by turning clockwise.
14. Press the unlock button four times with a one second interval in between, the lights will flash with each button press for a total of four flashes.
15. Wait 10 seconds and press the unlock button. The doors should unlock. The fourth transmitter is now programmed.

16. Remove the key from the ignition.

Make sure that to test the newly program remotes, the original key is removed from the ignition since this exits the programming process. Someone might be a bit frustrated trying to test it with it still in 'program' mode.

I had some diffuculty accessing the programming mode. If it doesnt work then take the key out of the ignition and start over. Rinse lather repeat. It will go eventually.

If you are still having problems after trying it more times than you can count, check the key is right one for year of car or that the key and battery are good.
Last edited by diaftia; 04-01-2012 at 09:53 PM.

Remote part numbers
4D0837231 with suffix letters  K system Pr5d1    L  pr5d3     M pr5d2   N pr5d3      P pr5d2       Q pr5d3  6v1
early A8  8L0837753A  7/96 - 7/97  system PR5D2
later A8  4D0837231P  8/97 - 12/98  system pr5d2
A6 Quattro, 4F0837220A  9/04 - 5/06  system PR4K2
8/97 - 4/02  231P  pr5d2
231T is the wagon 2 button
5/02 - 1/05  231M  pr5d2

If you have a broken key blade, have it copied or code cut and install the blade, back onto your keyless entry unit.
No activation is needed.
If you have a good key blade but the remote is damaged or the flip mechanism cam is broken you can replace the cam key blade holding portion.  Go to the bottom of this page to buy the cam repair kit.

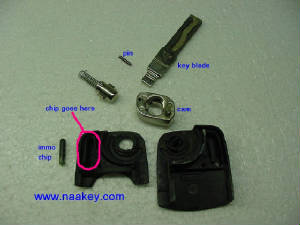

No activation is needed. Separate the remote from the flip key. Pry the emblem off.
Under the emblem is a Phillips screw, remove it. ( I sell replacement cam with pin and emblem)
The halfs will separate. In the long slot there is a glass pill, looks like a long black grain of rice.
That is the computer chip. Remove the chip from the old flip and install in the new flip. It may be glued in, DO NOT BREAK IT $$$.
Now the computer will recognize the new flip key as the old flip key. See picture at the bottom of this page.

All flip keys are Main keys.  Valet key is a different blank, series NAA, it is cut the same but will not enter the glove box or trunk lock. There is no such thing as a master key. (that would be like the key housekeeping uses in a hotel and the rooms are different cars) Markings on the key, Huff, w3, etc mean nothing, they are not codes. These keys do not have codes marked on them.

Advanced programing to change instrument cluster click here.  Emergency start if you know your immo code http://www.myturbodiesel.com/1000q/multi/immo-2-vw-audi.htm#Emergency start

CONTACT US by clicking here to order a flip key, please include your vin and model, also include a picture of the key pointing to the right if you only have 1 key, you are tempting fate, order 2 new flip keys and a spare main key. Immobilizer vehicles can have up to 4 fully functioning keys.

Example of picture we need is below:


Pay through Paypal Paypal The items listed below are for single purchase and do not include any key cutting services. Please email for key cutting services and lost key cutting services. mark1service@comcast.net

If you wish to purchase more than 1 item, please email click here to email mark1service and a Paypal invoice will be sent. International sales require EMS shipping costs of $30, remember that North America remotes do not work in most other European countries unless your car is from the usa market.


Solution Graphics



 Item picture  HAA flip key blade, oem quality copper nickel zink uncut $15 (dealers can cut these)
(no brass, no steel)


  new oval 3 button flip key remote $79.99
oval 2 button version is available works on Audi up to 2001


   new square 3 button flip key remote 753DJ $49.99
This is the same as the AM or DC but without the panic button
works on Volkswagens 2002 to 2005

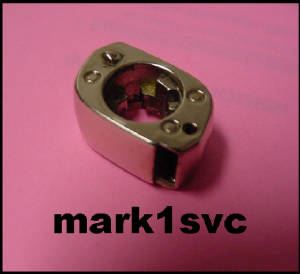

  Audi flip key cam & pin  $20

Here is the youtube video on how to open your flip if it is still stuck after removing logo and screw


   2 Swivels for your remote $10

Enter content here

VAG COM & VAG 1552 Key Activation PROCEEDURE

17 login Q
enter 0 + 4 digit skc then press Q
10 = adaptation = # of keys you have present, arrow up or down
wait for immo key light to turn off then insert next key, turn ignition on, wait for immo light to turn off, repeat for key 3 and 4
Adaptation should be set to the number of keys that are present


system 35 Q
10 = adaptation = 4 (it does not matter if you have less than 4 remotes)
Q then press button on first remote, wait for park lights to flash, repeat for additional remotes
06 = end output, and you are done



Key logic

I am not here to shove the sale of extra keys down your throat, however the loss of the last or only key to your car will cost you dearly in inconvenience and money. Immobilizer cars may have to be towed to an Audi dealer in order to activate a new key if you do not know your skc or have a mobile locksmith who can activate a new key in the field. It is not easy to find someone who can cut the sidewinder key. Do no asume that it can be done just anywhere. (no retail store cuts these keys) Some Audi dealers will only cut the keys they sell.

Your car came with 2 flip keys and a valet function key. You can have up to 4 working keys that will start immobilizer cars. Non immo cars can have any number of keys but only 4 functioning remotes.

Any combination of flip, valet, regular main keys are possible for the 1998 to 2004 cars.

If you have only a badly worn flip key with a loose blade and dead remote. Make that your spare and keep it in the house somewhere. Purchase 2 or 3 new keys and put them into service. Should you part with the car for some reason (wrecked it) the remote portion can be used in another Audi of the same era or resold for another Audi owner to use.

Regular main keys and valet keys are worthless to anyone other than the owner of the car they go to. They cannot be reused. Once they are cut, they will only work for that car. The blade cannot be replaced.
